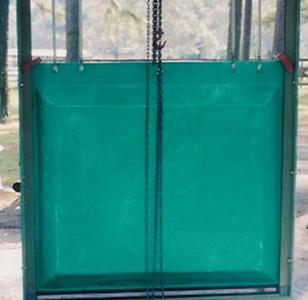

Glass-Steel fiberglass stop gate with reinforced composite construction

Chillicothe, OH

Custom FRP Flow Control for Water + Wastewater Treatment

Stop Gates Features + Specifications

CUSTOM FIBERGLASS STOP GATES

  • Water Treatment Plants
  • Wastewater Treatment Plants
  • Industrial Applications
  • Flow Channels
  • Temporary Water Storage
  • Water Flow Control
  • Channel Isolation
  • Wall-Mounted Installations
  • Embedded Guide-Frame Installations
What are fiberglass stop gates used for?

Fiberglass stop gates are used for temporary storage and control of water in flow channels at water and wastewater treatment plants. Glass-Steel®, Inc. custom fabricates stop gates to meet the requirements of each application.

Can Glass-Steel®, Inc. custom fabricate stop gates?

Yes. Glass-Steel®, Inc. fabricates fiberglass stop gates with dimensions and reinforcement designed according to the loading, flow-control and installation requirements of the particular application.

What materials are used in fiberglass stop gates?

For most water and wastewater applications, Glass-Steel®, Inc. uses isophthalic polyester resin for the main body and core reinforcement. Guide frames are typically fabricated from fiberglass pultruded structural members.

How are fiberglass stop gates sealed?

Stop gate systems utilize neoprene J-bulb seals along the guide frame and a bottom J-bulb seal attached to the stop gate for sealing at the floor.

What guide-frame options are available?

Fiberglass stop gates can be furnished with wall-mounted or embedded guide frames. Guide frames are usually fiberglass pultruded structural members, with aluminum or stainless steel available upon request.

How are fiberglass stop gates reinforced?

Stop gates can incorporate an integral thickened boss area or structural reinforcing members to achieve the load and deflection criteria required for the particular application.

What are the benefits of fiberglass stop gates?

Fiberglass stop gates are less expensive than comparable aluminum or stainless steel stop gates and provide greater corrosion resistance.

Fiberglass Stop Gates & Plates Technical Brochure

Fiberglass Stop Gates

Applications

  • Custom fabricated for each application
  • Fiberglass Reinforced Plastic (FRP) construction
  • Isophthalic polyester resin construction
  • Integral thickened boss areas or structural reinforcement as required
  • Designed for project-specific load + deflection requirements
  • Guide-frame systems
  • Neoprene J-bulb side seals
  • Bottom J-bulb seal
  • Surface-mounted + embedded guide configurations
  • Corrosion-resistant construction
  • Custom dimensions + configurations

Contact Glass-Steel®, Inc. to discuss your project requirements, specifications and custom fabrication needs.

Stop Gates & Plates - For Water, Wastewater, and Industrial Applications

Glass-Steel®, Inc. designs and fabricates composite fiberglass stop gates for temporary storage and control of water in flow channels at water and wastewater treatment plants. Stop gates are custom designed and fabricated, with dimensions and reinforcement designed to suit the requirements of each application.

For most water and wastewater applications, Glass-Steel®, Inc. uses isophthalic polyester resin for both the main body of the stop gate and the core reinforcement. Stop gates can incorporate an integral thickened boss area or structural reinforcing members to achieve the load and deflection criteria required for the particular application.

Stop gate systems utilize guide frames with neoprene J-bulb seals to provide sealing along the sides of the gate, with a bottom J-bulb seal attached to the stop gate for sealing at the floor.

industrial & municipal fiberglass fabrication

Call now: 1.281.572.2211

Glass•Steel®, Inc. fiberglass fabrication

Need a Fiberglass Stop Gate Solution?

Fiberglass stop gate for water and wastewater treatment flow control
Stop Plates and Gates - For Water, Wastewater, and Industrial Applications

Download the Stop Gates and Plates Brochure to view product information, configurations, specifications and technical details for Glass-Steel®, Inc. fiberglass launder cover systems.

Glass-Steel®, Inc. stop gate systems utilize guide frames designed to support and properly align the gate during operation. Guide frames can be configured for surface-mounted or embedded installations depending on project requirements.

Neoprene J-bulb seals are located along the sides of the gate, with a bottom J-bulb seal providing sealing at the floor. Guide configuration, mounting hardware and installation details are determined according to the channel dimensions, operating requirements and specific application.

Frequently Asked Questions

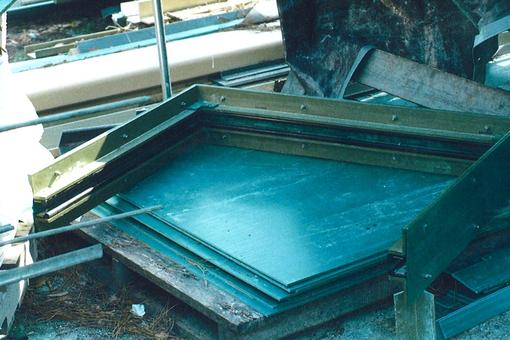

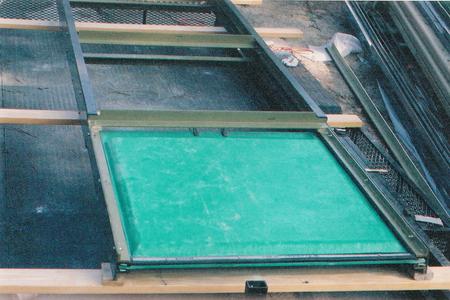

Fiberglass stop gate with embedded guide frame and J-bulb seals

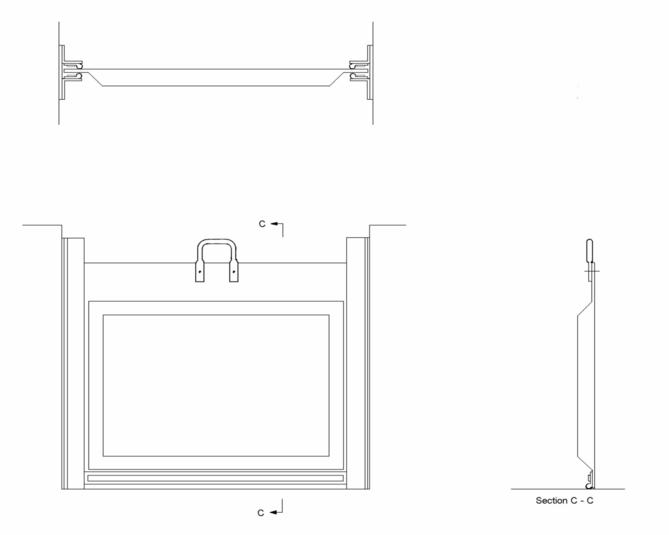

Guide + Installation section

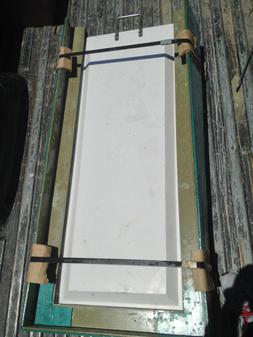

Fiberglass stop gate with wall-mounted guide frame for wastewater treatment

Fiberglass Composite Stop Gates
